Sunstone 200W Mono Black Solar Panel with High Power Performance for PV Systems, camper

Home > Products > Solar Panel

Sunstone 200W Mono Black Solar Panel with High Power Performance for PV Systems, camper

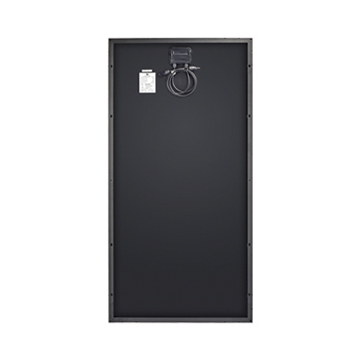

SUNSTONEPOWER 200W BLACK SOLAR MODULES SUNSTONE POWER SPMB200

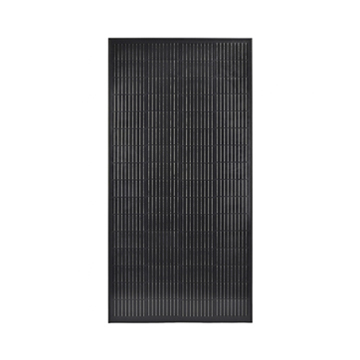

SUNSTONEPOWER 200W BLACK SOLAR MODULES SUNSTONE POWER SPMB200

200W Solar Panel Black Monocrystalline PV Module for 12V 24V Solar System, Windowsill, RV SPMB200

  • Brand: Sunstone Power
  • Model: SPMB200
  • Material: Mono Crystalline
  • Type: Full Black

Product Descriptions

  • 200W at standard test conditions
  • 19.7% maximum efficiency
  • 0~5W positive power tolerance
  • 3 bypass diodes
  • 25 years line warranty

Solar Panel Module Monocrystalline

200 watt solar system for caravans

The modules are composed of high-efficiency solar cells, and a series of quality performance tests are carried out in accordance with strict quality standards during the production process to ensure that the modules can work normally in various harsh environments and to ensure the maximum output power of the modules when generating electricity.

  • 200W at standard test conditions
  • 19.7% maximum efficiency
  • 0~5W positive power tolerance
  • 3 bypass diodes
  • 25 years line warranty

specification

Weight 12KG
Dimensions 1420x715x30mm
Junction Box IP68
Output Cable 2.5mm², 900mm
Connector MC4
Rated Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 18.00V
Maximum Power Current(Imp) 11.11A
Open Circuit Voltage(Voc) 21.06V
Short Circuit Current(Isp) 12.44A
Module Efficiency 19.70%
Maximum System Voltage 1000V DC
Maximum Series Fuse Rating 15A
Operating Temperature -40~85°C
