Sunstone Power 48V 200AH LiFePO4 Battery For Solar System

Home > Products > Lithium Battery > LiFePO4 Battery

Sunstone Power 48V 200AH LiFePO4 Battery For Solar System

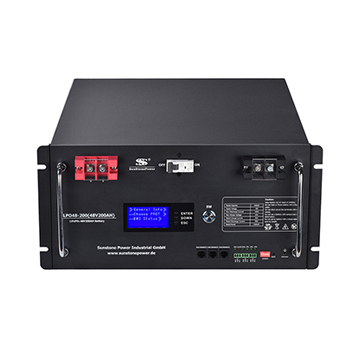

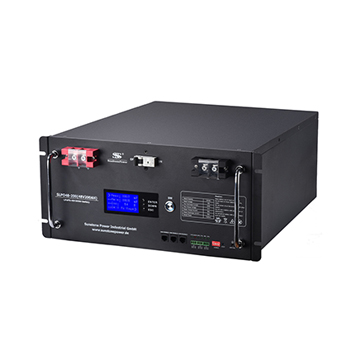

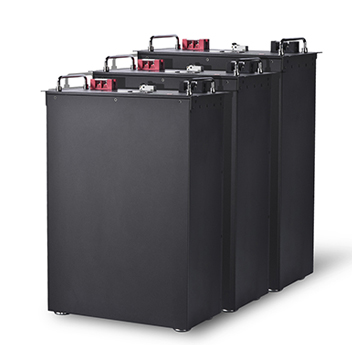

SUNSTONE POWER SLPO48-200 lithium battery power bank SUNSTONEPOWER LIFEPO4 SLPO48-200 storage battery for solar power 10kwh home battery storage photovoltaic system SUNSTONEPOWER 48V Lithium battery for photovoltaic
SUNSTONE POWER SLPO48-200 lithium battery power bank SUNSTONEPOWER LIFEPO4 SLPO48-200 storage battery for solar power 10kwh home battery storage photovoltaic system SUNSTONEPOWER 48V Lithium battery for photovoltaic

48V 200AH Lithium Battery 9.6kWh Energy Storage with LCD for Home Solar System SLPO48-200

  • Brand: Sunstone Power
  • Model: SLPO48-200
  • Material: Lithium iron phosphate
  • Type: Energy storage battery
  • Warranty: 3 years warranty with floating or cycling use between 0°C-40°C
  • Application: Backup power, UPS, Telecommunication system, etc.

Product Descriptions

  • Over 4000 cycles at 80% DOD
  • Strong discharge capability up to 100A
  • 12 years design life (at 40°C)
  • Low self-discharge (1% / month)
  • RS485 & CAN ports for BMS

SLPO Series LiFePO4 Battery

Designed and developed by Sunstone, the SLPO series is a rechargeable lithium iron phosphate battery pack. Inside the robust metal case there are 15 pieces of 3.2V LiFePO4 cells with high energy density and a BMS that takes over the monitoring and protection functions. The stable, safe and reliable battery pack is suitable for solar systems and UPS.
Customers can choose applicable inverter protocols, such as Victron, SMA, Growatt, Deye, etc., to achieve communication between LiFePO4 batteries and inverters to facilitate PV system management.

  • Over 4000 cycles at 80% DOD
  • Strong discharge capability up to 100A
  • 12 years design life (at 40°C)
  • Low self-discharge (1% / month)
  • RS485 & CAN ports for BMS

Specification

Nominal Capacity200Ah
Nominal Voltage48V
Max. Charge Voltage54V
Discharge Cut-off voltage40.5V
Max. Charge Current100A
Max. Discharge Current100A
Standard Charging Current50A
Standard Discharge Current50A
Pack Impedance Standard<100mΩ
Weight88Kg
Dimension620x483x220mm
Cycle Life4000 time at 50A, 80% Capacity at 25°C
Operating temperatureCharge temperature 0~60°C

Discharge temperature -20~60°C

Storage temperature -20~45°C


Download PDF
