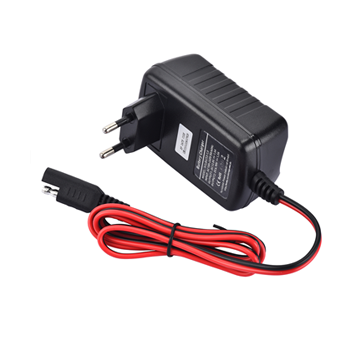

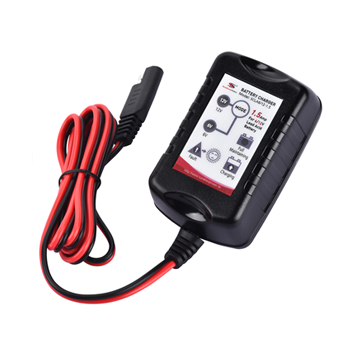

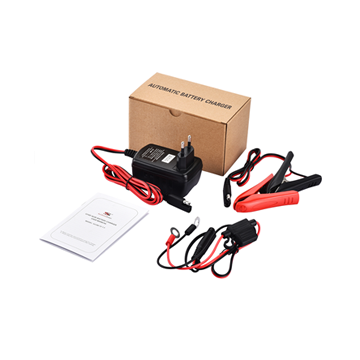

The SCLA6/12-1.5 is an ideal choice to recharge and maintain batteries in automotive and hobby applications. The charger offers perfectly trimmed charging curves for WET, AGM, and GEL batteries.
The charger also has the function of timer protection. If it is connected to a battery larger than the recommended capacity value the charger will stop charging after the maximum stage recommended time, and start the maintaining mode automatically to protect the battery no overcharge.
Dimension | 14x8x8cm |
Weight | 0.3kg |
Input | 100~240VAC 50/60Hz |
Output | 12VDC 1.5A |
6VDC 1.5A |
|
Max. Voltage | 14.7V |
Min. Starting Voltage | 2V |
Recommended Capacity(charging) | 5~40Ah |
Recommended Capacity(maintenance) | 5~60Ah |
Protection | IP64 |
Approved | CE, RoHS |
